CNC SINK CUTS

Cut out quickly sink holes from any stone material, let it be granite, marble, quartz, gres porcelain, ceramic like Dekton, Breton, Laminam, ...

The strong brushless motors move the axes fastly on linear guides with utmost precision and you can obtain a well-cut sink hole in 10 minutes. The edge can be finished up to final polish within 10-20 minutes, depending on material, tools, desired finishing grade.

TECHNICAL DATA

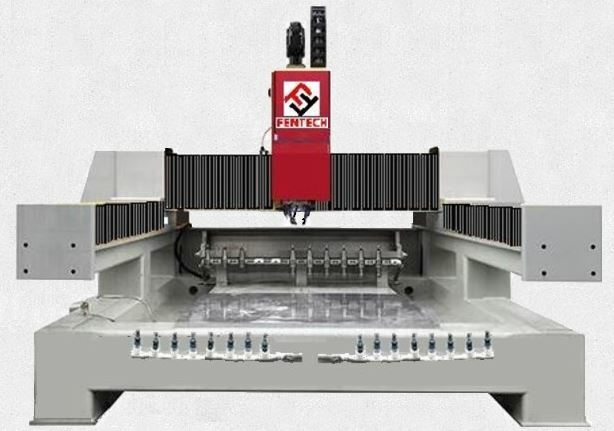

3 AXES CNC WORK CENTER

Dimensions       2850 x 2250 x 2300 mm, 1800 kg
Basement         very rugged, sturdy tubolar steel structure
Protection         hot-dip-galvanized and painted

Work strokes     -X 1300  -Y 800  -Z 200 mm
Work piece        L x W no limits, thickness max. 50 mm

Electro spindle  11 kW (15 hp) - 10000 rpm
Fitting                BT40 fitting, internal water flow
Tool change      automatic
Rear rack          11 positions

Vacuum            dedicated Dvp vacuum pump

Suction cups    2-ways suction cups
                         inverse air flow on top creates air cussion to adjust the work piece
